点数供料器-M3、M4螺丝通用款

首页 >图纸库>机械设备>非标设备2024-08-28报告错误错误问题可与客服联系，感谢您的支持！[获取免费下载]分享好友可以免费下载哦！0

图纸描述

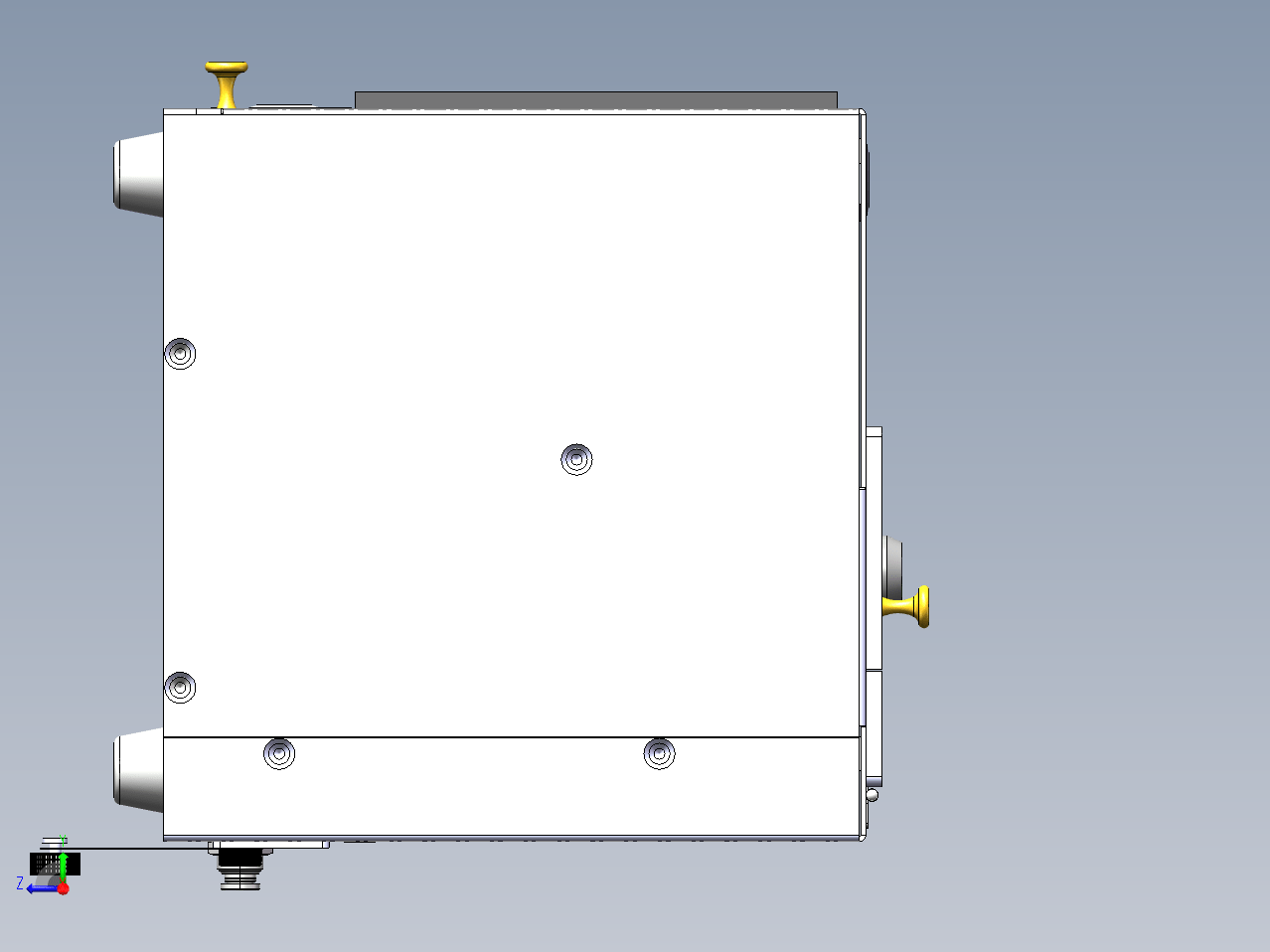

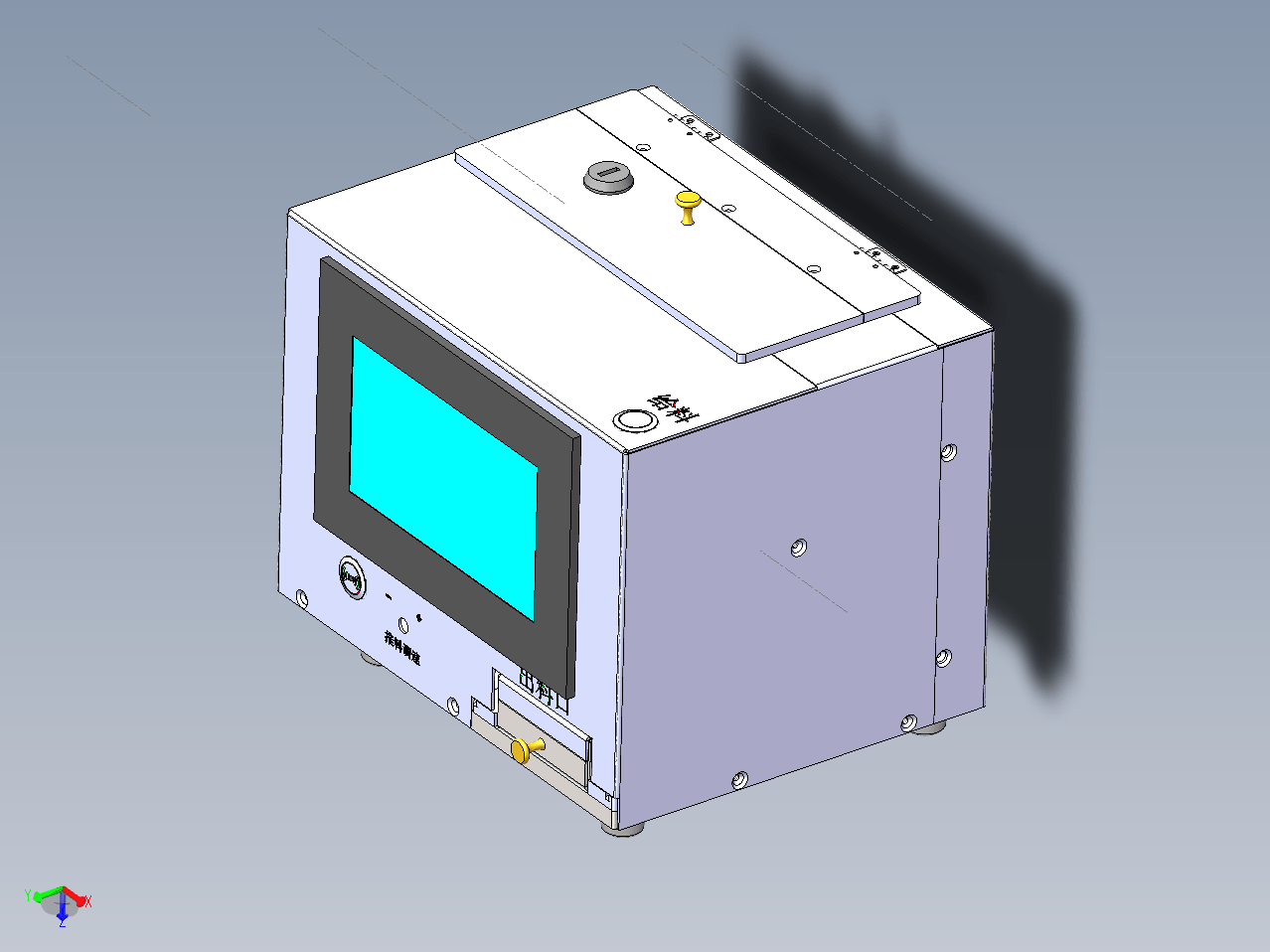

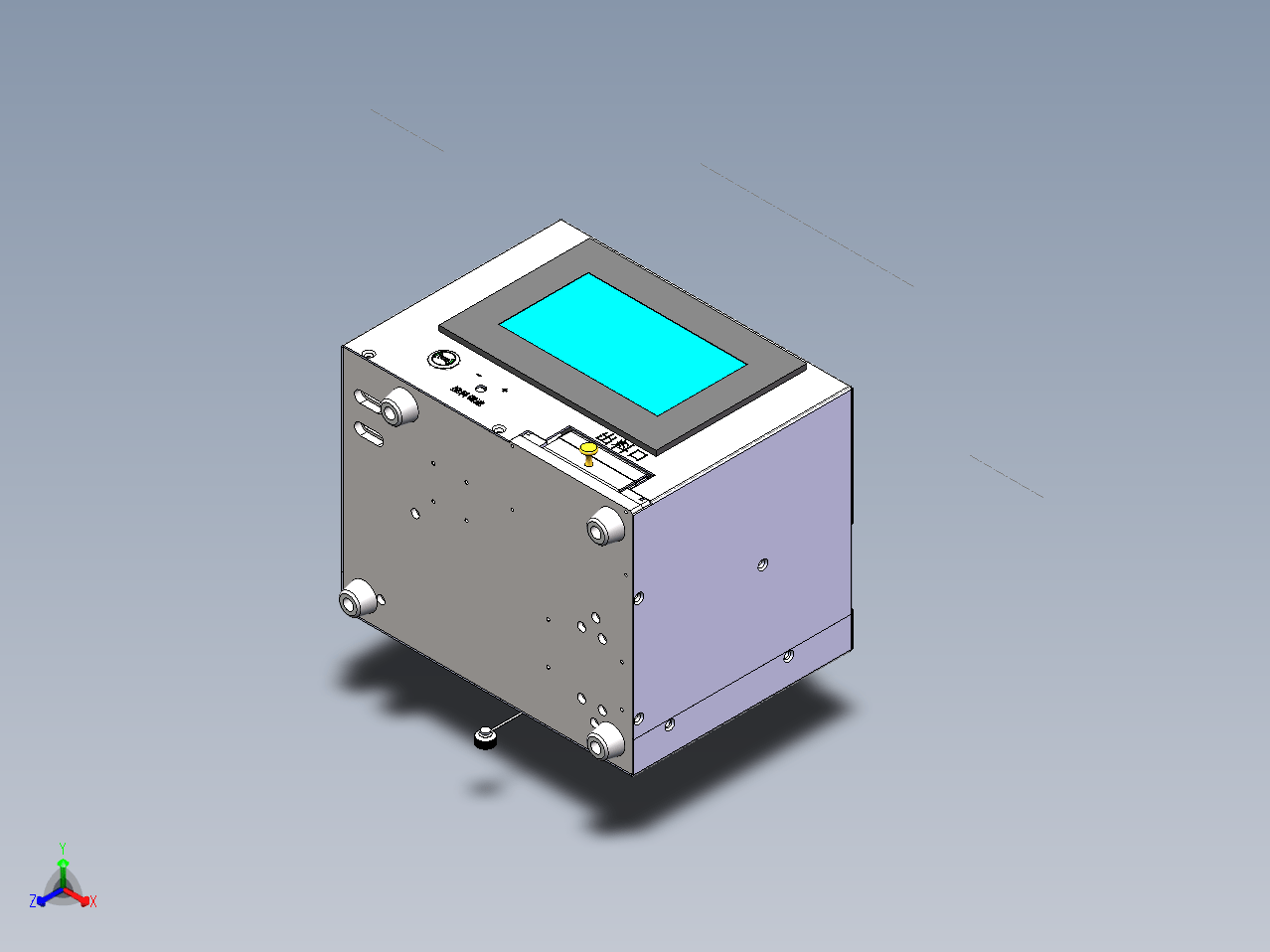

此供料器采用爬楼梯式送料，当螺丝到达顶部时由微型直振器通过轨道将螺丝送至计数模组，计数模组在PLC的预设值控制下驱运微形手指气缸工作开始计数，此供料器可以手动点数也可以自动触发点数两种模式，M3和M4螺丝切换时只需更换轨道和点数模组接料舌头，本图纸含标准件和机加件BOM，下载后可以根据自身品质要求拆图加工。

下载需要50金币推广可免费下载

立即下载收藏

图纸信息

图纸ID ：673403

文件大小：98.67M

所需金币：50

图纸参数：可编辑，包含特征参数

图纸分类：机械设备

图纸格式：sldprt、sldasm、STEP

软件版本：Solidworks 2022

作者

醉清风

已分享: 份作品

关注

咨询

文件列表
